I did the Resonator Bypass but found that my intake started making a vibration sound. We all know that GM spent a lot of time and money making our intakes and that aftermarket ones aren't as good as we once thought they were. So if you want to hear your intake a little more and get around that pesky resonator while still utilizing the full potential of your intake from front to end, this is for you. There is another "How to" on bypassing it, but you might be getting some hot engine air from it as the box does not create a perfect seal. You also might want the air coming in from the front of your car where the "snorkel" is so alls you gotta do is hack up for resonator. By no means am I an expert and this might have been a terrible thing to do to my car but only time will tell and other experts from our forum. Let me know what you think! I have much to learn.

Here is what you need:
Dremel /saw
Sander
Some sort of glue
A 1 1/2inch PVC Cap
A rubber cap with clamp


First step is to follow normal Instructions to get to your resonator and remove it. Here is a link to how people get to it during installation of their Injen intakes: http://www.cruzetalk.com/forum/57-how-library/3977-injen-cold-air-intake-install.html

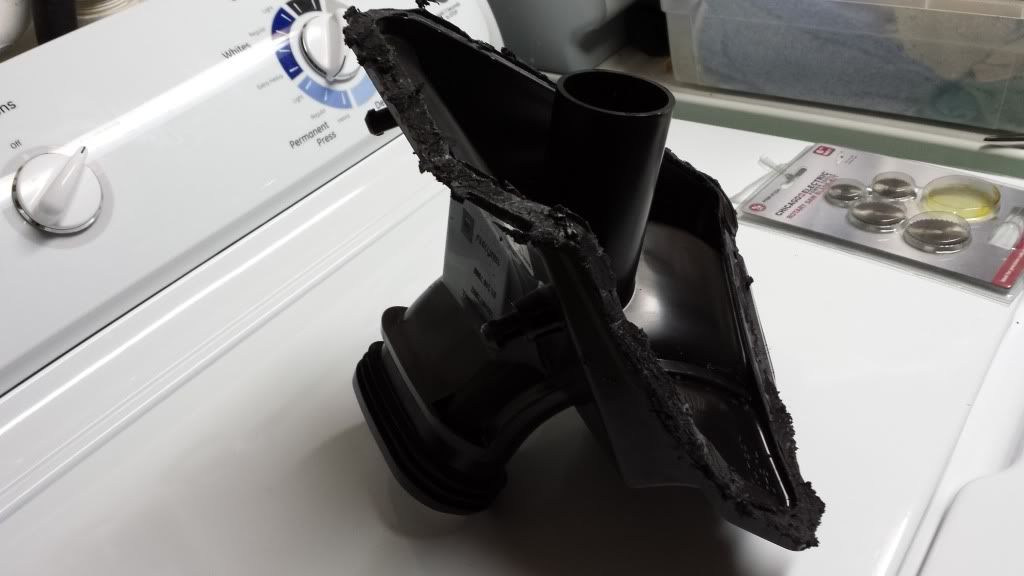

Once that is out here is what your intake looks like:

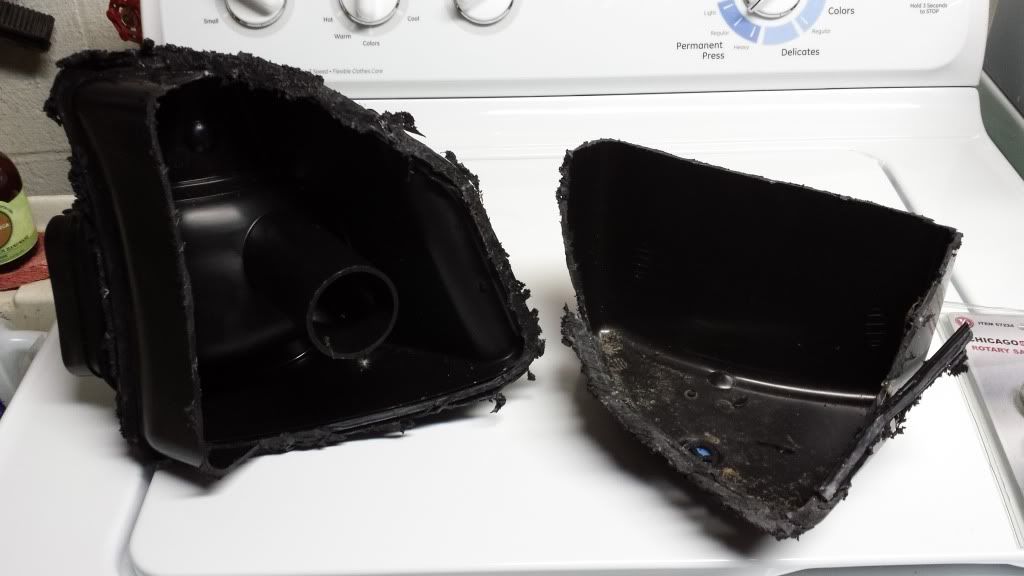

Cut that sucker right in half with a dremel or saw using the seam that is shown along it's side:

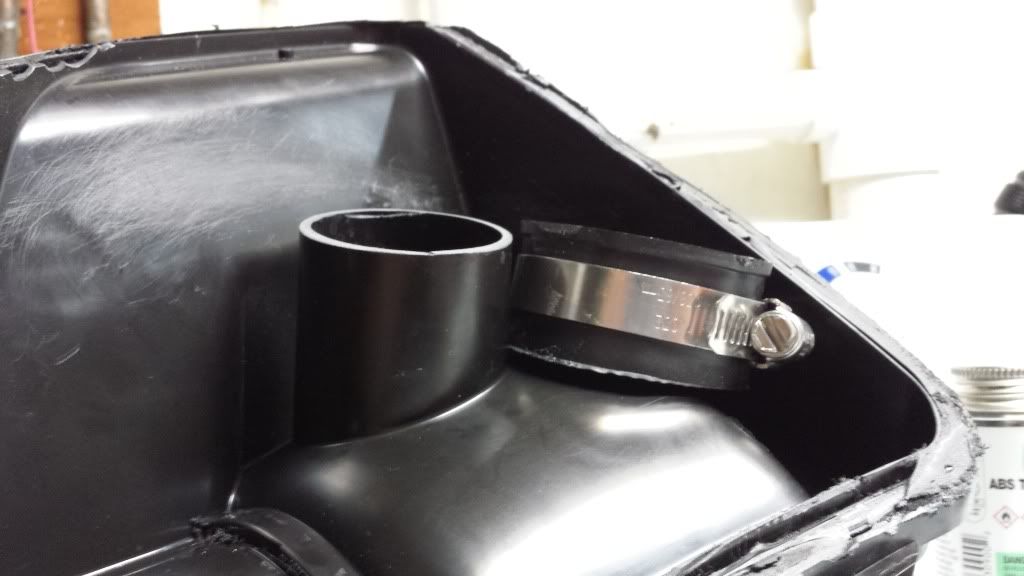

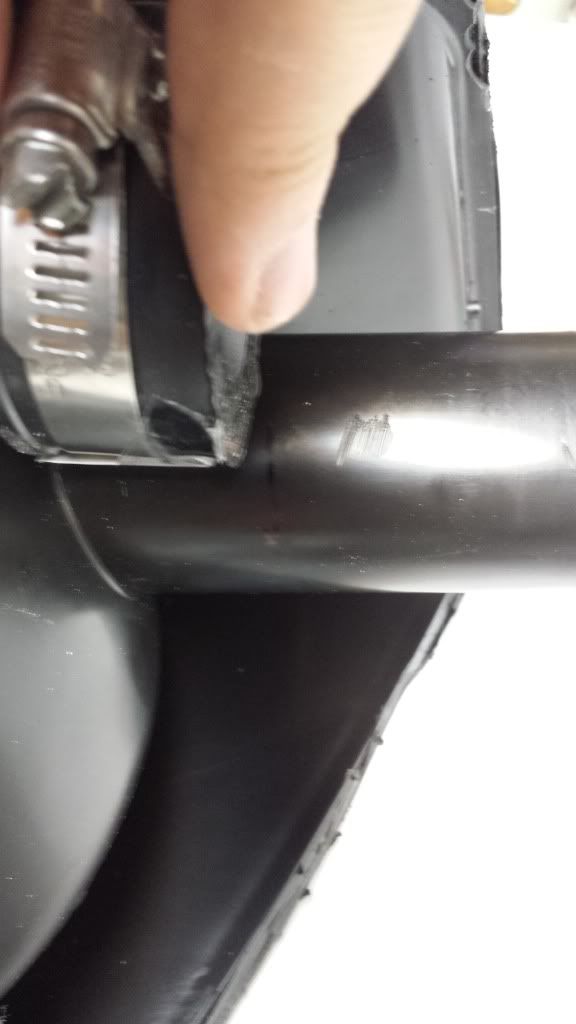

You can now sand the edges where you just cut or not depending how much of a perfectionist you are. In this pic you will notice the tube sticking into where the resonator guts where. This is what is gonna need to be plugged airtight for you to have the sound/performance of no resonator:


Take the rubber cap and using a marker, make a line where the top of the cap is. This is where you will cut:

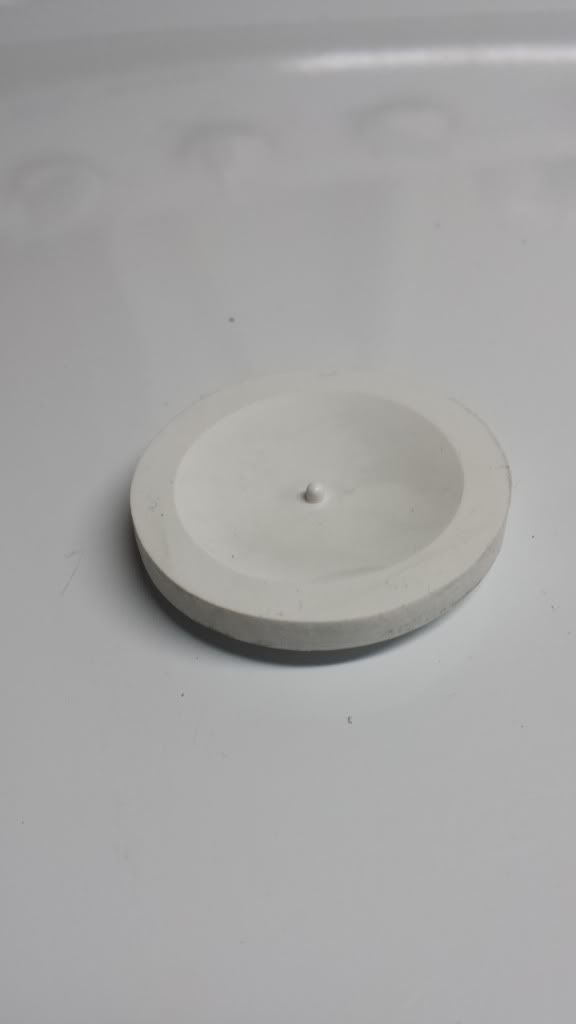

Cut it and sand it down to a perfect straight tube that is a lot shorter:

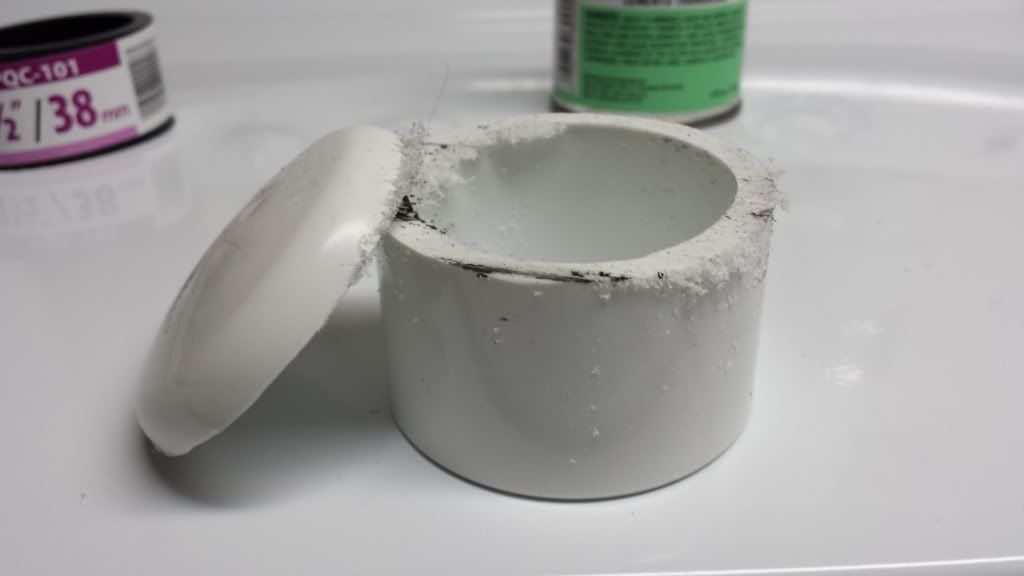

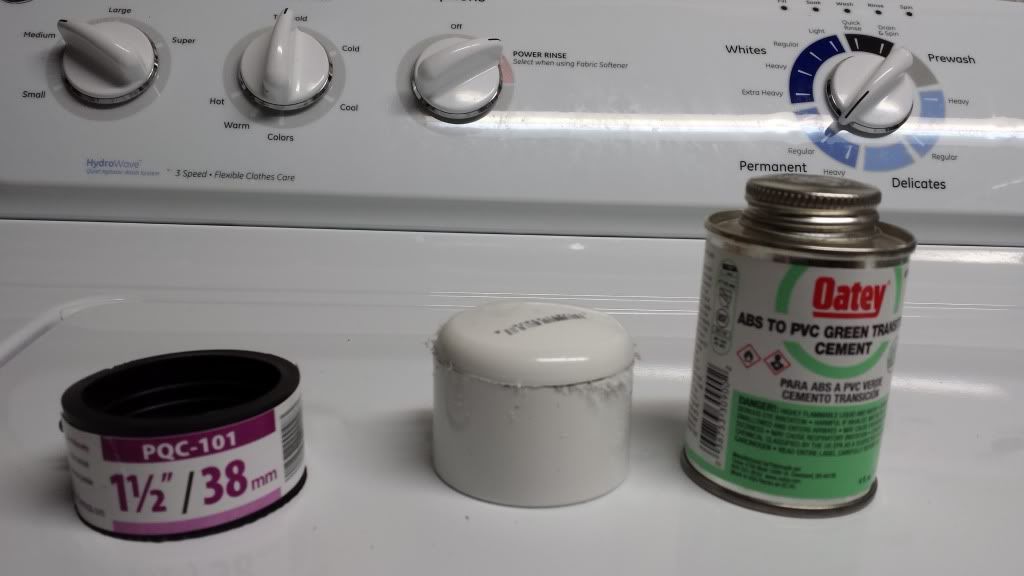

Clean up the resonator that you have left and grab your 1 1/2inch PVC cap. Cut the cap here:

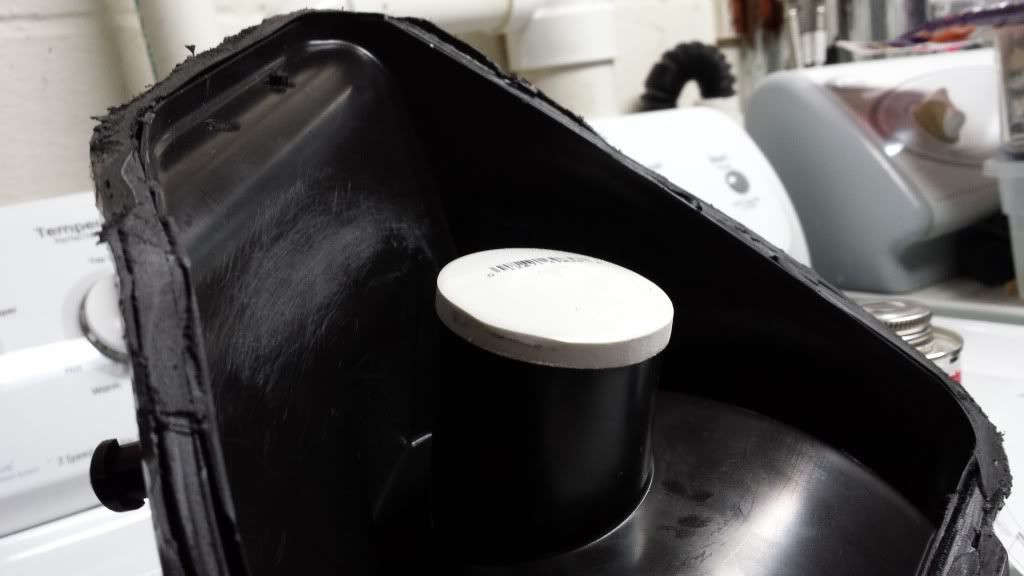

Place the rubber cap over your PVC cap remains and draw a line indexing where to cut/sand down to so that the PVC cap will fit inside your rubber cap. The purpose of the PVC cap is to cover the tube end. The rubber and glue will make the plug airtight, but the rubber could get sucked into the intake under the turbos power 18+psi. The PVC prevents this from happening. This is the PVC plug sanded down so it will fit inside the rubber plug but not into the tube no matter what:


Put your glue or cement or JB weld onto the bottom of the PVC cap and put that onto your tube to cover it:


Cover the inside of your rubber cap with glue and jam that thing down into of your PVC cap and tube. Then screw it tight and hold it down for a few minutes:

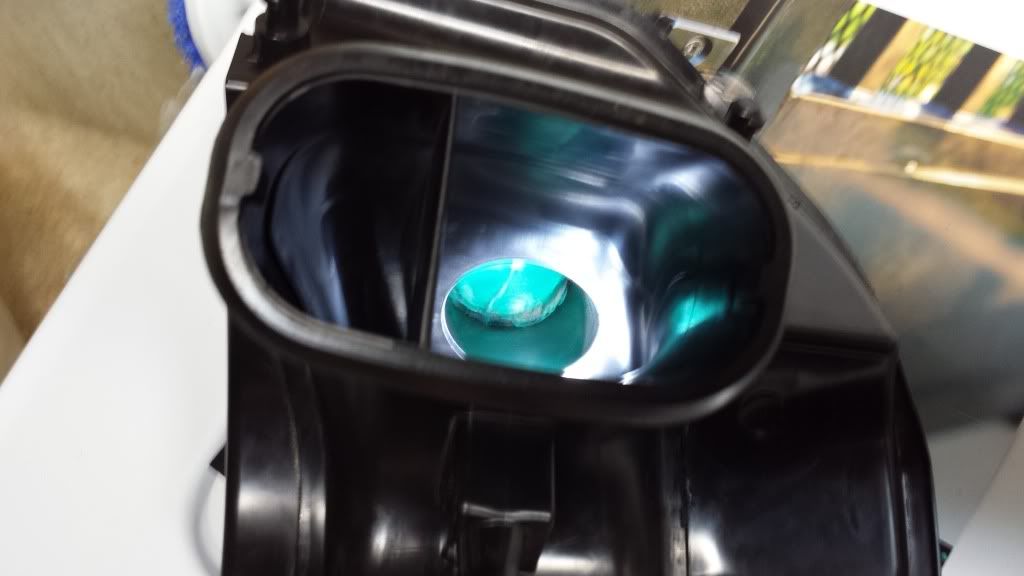

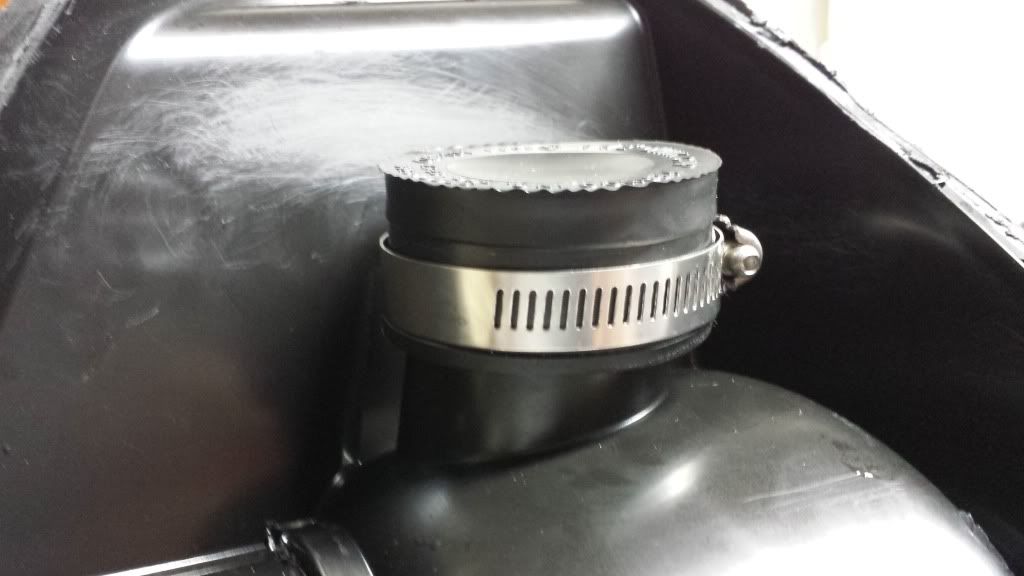

This is the plug installed. Looking in from the intakes other end. The blue/green is the glue on the bottom of the PVC cap:

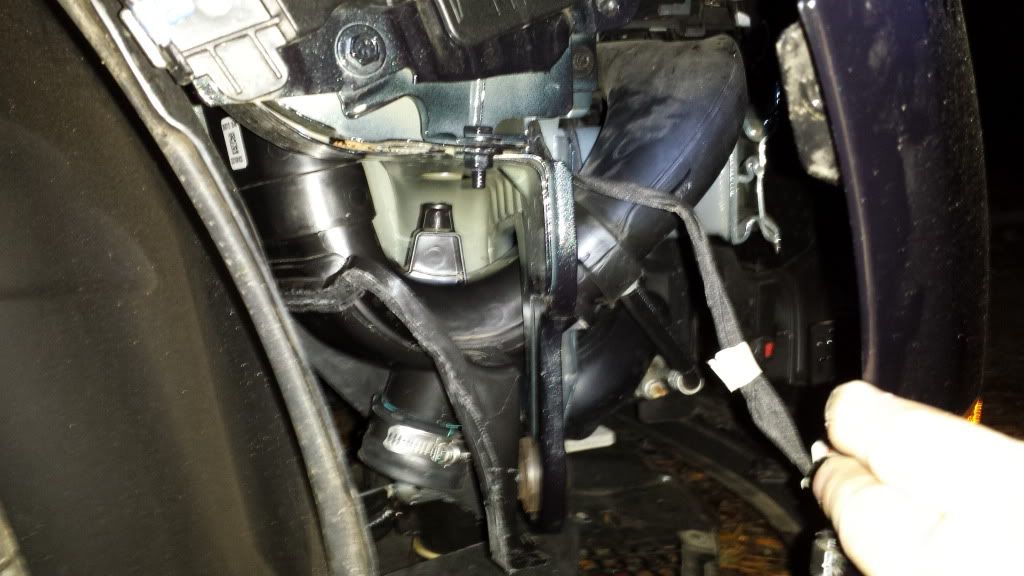

You are done when it is dry. Reinstall it back into your car and secure it all down:

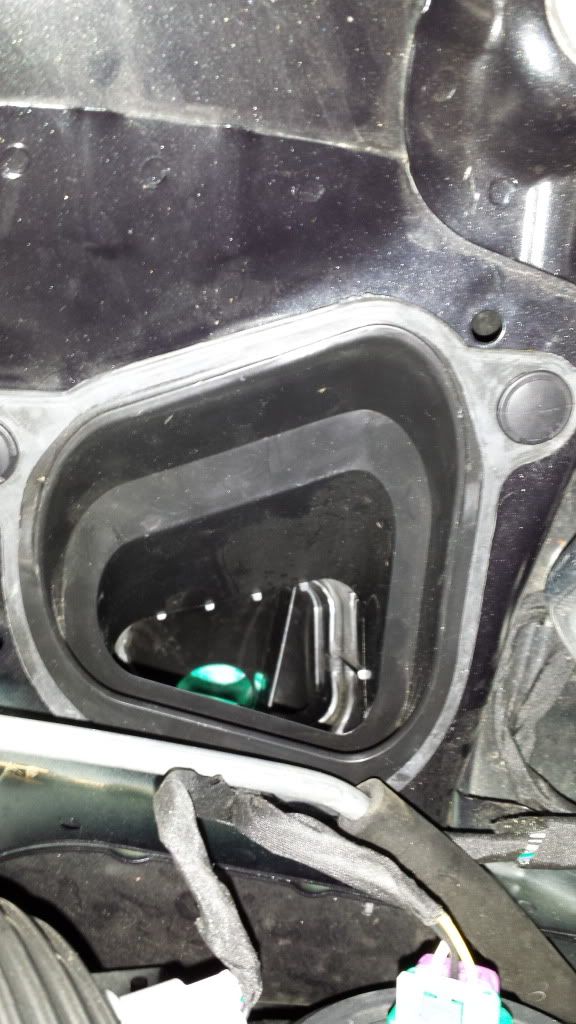

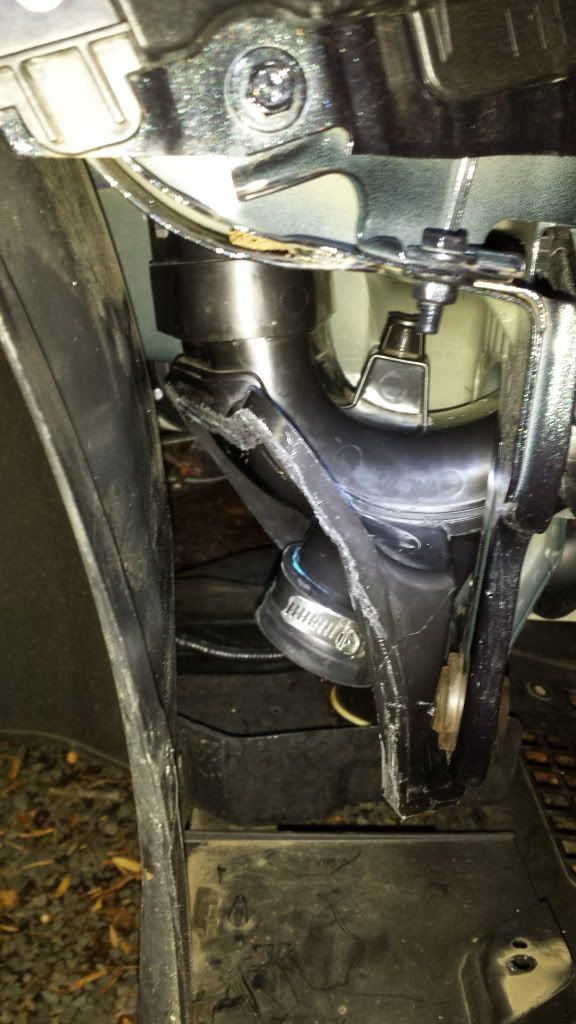

A view from the engine bay with the filter box removed:

THAT'S ALL FOR NOW FOLKS. I will be reporting back with any information that I learn from it. Let me know what you think. Hit me with questions and criticism. I wanted to learn and experiment by taking a resonator bypass to the next level. I MIGHT be dropping a K&N filter in the box or something else soon.

~Mike


·
Administrator
Joined
·
15,603 Posts
Well that's a new way to do it. I like it! Bypassing the resonator while keeping the stock plumbing. This is a good option for those who want a bit more sound but don't want to compromise the general design of the stock intake. Thanks for putting this together.


·
Registered
Joined
·
93 Posts
any results yet?


·
Registered
Joined
·
259 Posts
Discussion Starter #6
Hey all I ended up installing an INJEN full CAI about a year later. Sorry for the delay. Yeah I posted this before PB decided to shake people down so the pics are probably dead.
